Threaded tie rods
/
SAS - FS 26.5 type
SAS - FS 26.5 type
Download
Product card
Ask for the product
Product description
The weldable tie rod with the full thread.
Cold-rolled.
Can be bent.
Compatible with SAS systems.
The useful length up to 12 m.
Assortment
Art. no.
Name
Length
Weight
rm
kg/rm
20103
FS 26.5
any
4.56
Technical specifications
FS 26.5

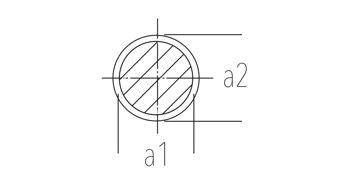

Outer diameter
a
, mm
30.0
Core diameter
b
, mm
26.5
Useful load, kN
240.0
Breaking force, kN
500
