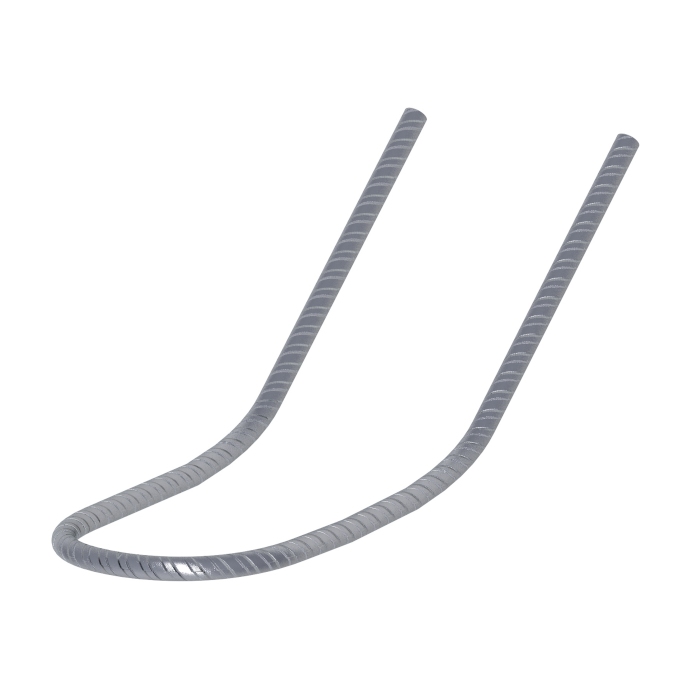

Product description
The anchor is made of a threaded rod 15, 20 or 26.
The anchor with the possibility of bending and welding.
Before commencing concreting of the bottom slab, a loop anchor should be installed.
The extension of the anchor is made by cones, connecting nuts or anchor fittings.
Assortment

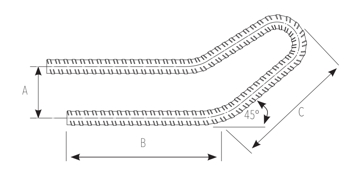

| Art. no. | Designation | Thread | A | B | C | Package | Useful load | Weight |
| mm | mm | mm | mm | pcs | kN | kg/pcs | ||
| 23401 | Loop anchor | 15 | 23 | 24 | 36 | 1 | 90 | 1.87 |
| 23402 | 20 | 30 | 40 | 30 | 1 | 160 | 3.94 | |
| 23403 | 26.5 | 35 | 45 | 45 | 1 | 280 | 8.69 |

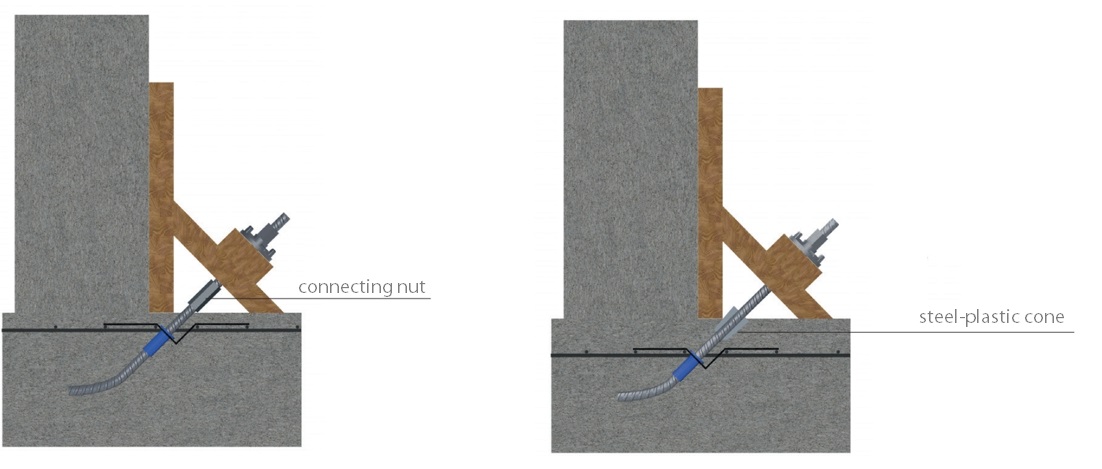

The use of the loop anchor with the connecting nut and with using and with the steel-plastic cone.
