Application

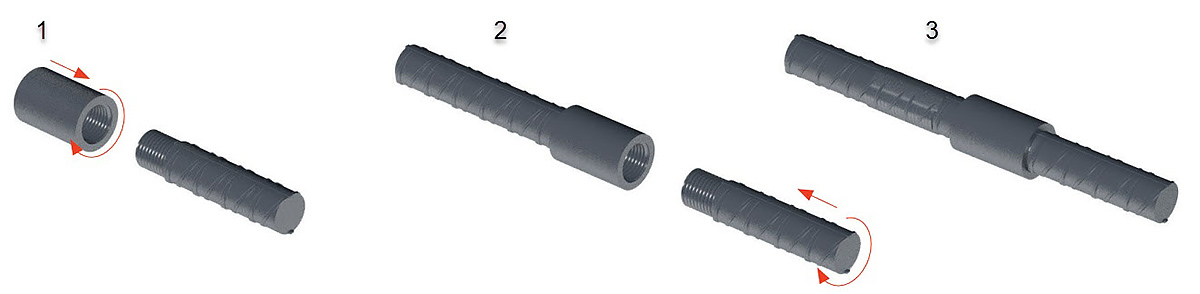

N type standard connection

This type of connection is used when it is possible to rotate the connected bar and move it along its axis.

The standard ES sleeve is screwed onto the base bar. The sleeve should be screwed on halfway (screw in until you feel resistance).
To the base bar with the sleeve, screw the bar with threading - B type.
The connection is ready.

Assortment

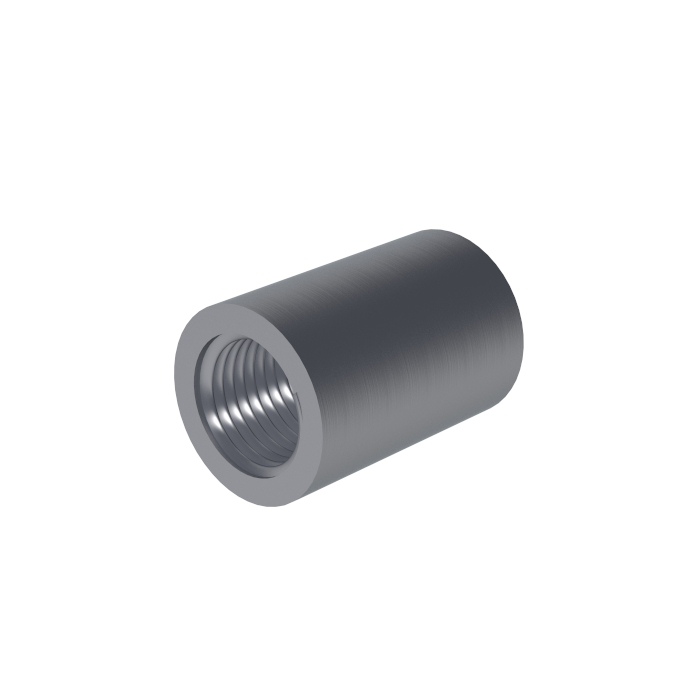

The standard nut ES

Art. no.	Designation	Thread	Ext. dia., D	Lenght, L
Art. no.	Designation	mm	mm	mm
30101	ES12	M14x2.0	20	28
30102	ES14	M16x2.0	24	32
30103	ES16	M20x2.5	28	40
30304	ES18	M22x2.5	32	44
30305	ES20	M24x3.0	35	48
30306	ES22	M27x3.0	36	54
30307	ES25	M30x3.5	42	60
30308	ES28	M33x3.5	48	66
30309	ES32	M36x4.0	52	72
30310	ES36	M42x4.5	60	84
30311	ES40	M45x4.5	65	90

The standard left-right nut - ERL

Art. no.	Designation	Thread	Ext. dia., D	Lenght, L
Art. no.	Designation	mm	mm	mm
30201	ERL12	M14x2.0	20	34
30202	ERL14	M16x2.0	24	38
30203	ERL16	M20x2.5	28	48
30204	ERL18	M22x2.5	32	52
30205	ERL20	M24x3.0	35	57
30206	ERL22	M27x3.0	36	63
30207	ERL25	M30x3.5	42	71
30209	ERL28	M33x3.5	48	77
30210	ERL32	M36x4.0	52	84
30211	ERL36	M42x4.5	60	98
30212	ERL40	M45x4.5	65	104
