Extrea Tec - The space nut - ED

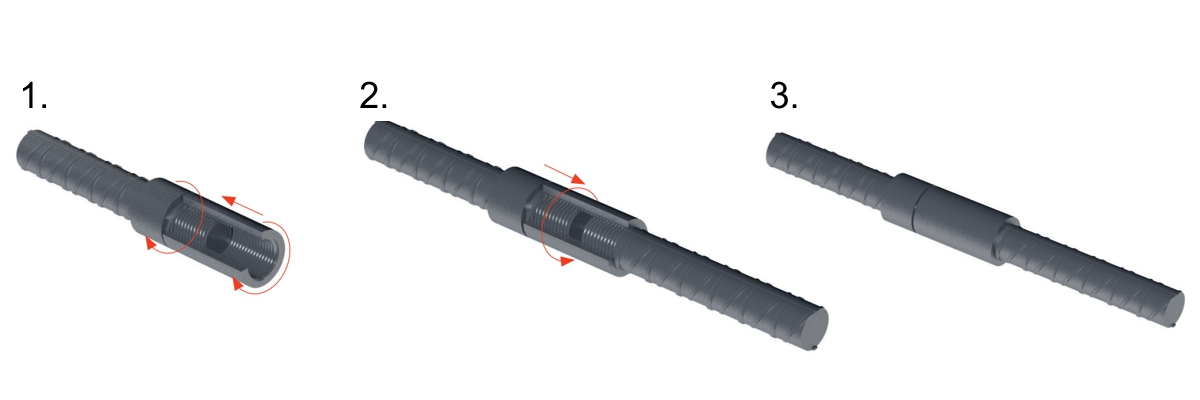

Use



  1. At the end of the base bar, screw the reduction sleeve until it stops.
  2. Then, screw in the connected rod until feeling a clear resistance.
  3. The connection is ready.



 Assortment

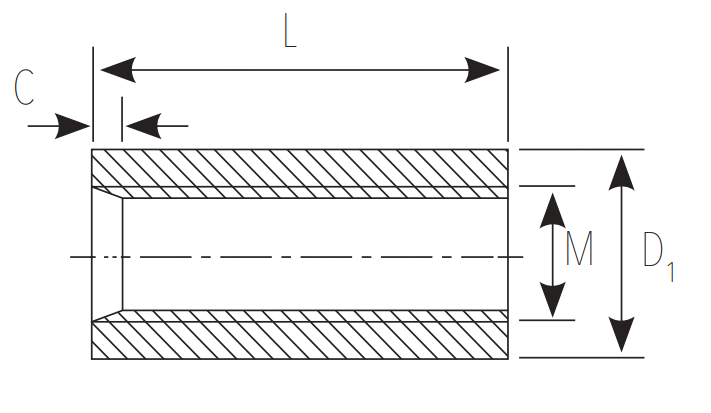

Art. no. Designation Thread Ext. dia., D Length, L
mm mm mm
30401  ED12 M14x2,0 20 44
30402 ED16 M20x2,5 28 61,4
30403 ED20 M24x3,0 35 73
30404 ED22 M27x3,0 36 82,1
30405 ED25 M30x3,5 42 92,5
30406 ED28 M33x3,5 48 101,6
30407 ED32 M36x4,0 52 109,9
