ErFlex 120 and 160

Product description

Sealing construction joints at the board-wall, wall-board contact.

• ErFlex 120 - it is available in two options - without a mounting foot (then mounting is carried out with the use of system clamps) and with a mounting foot.

• ErFlex 160 - it is available in two options - without a mounting foot (then mounting is carried out with the use of system clamps) and with a mounting foot.

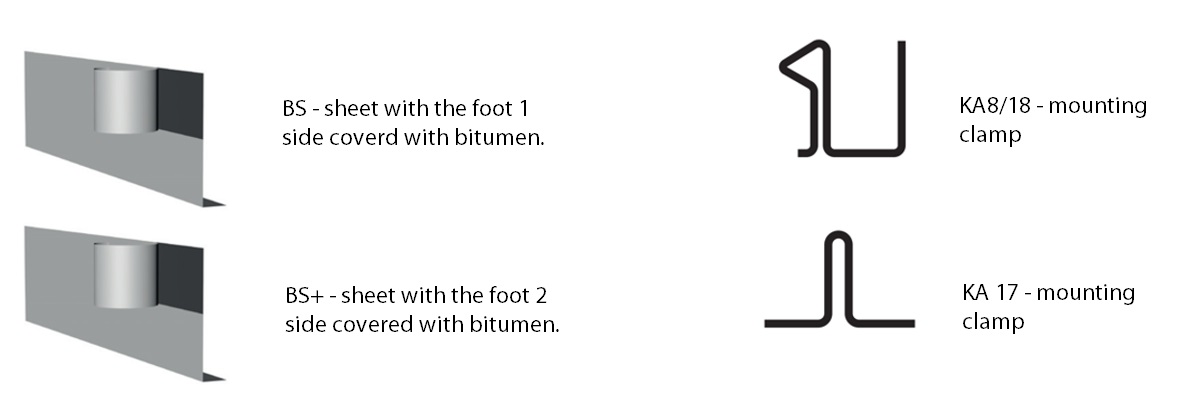

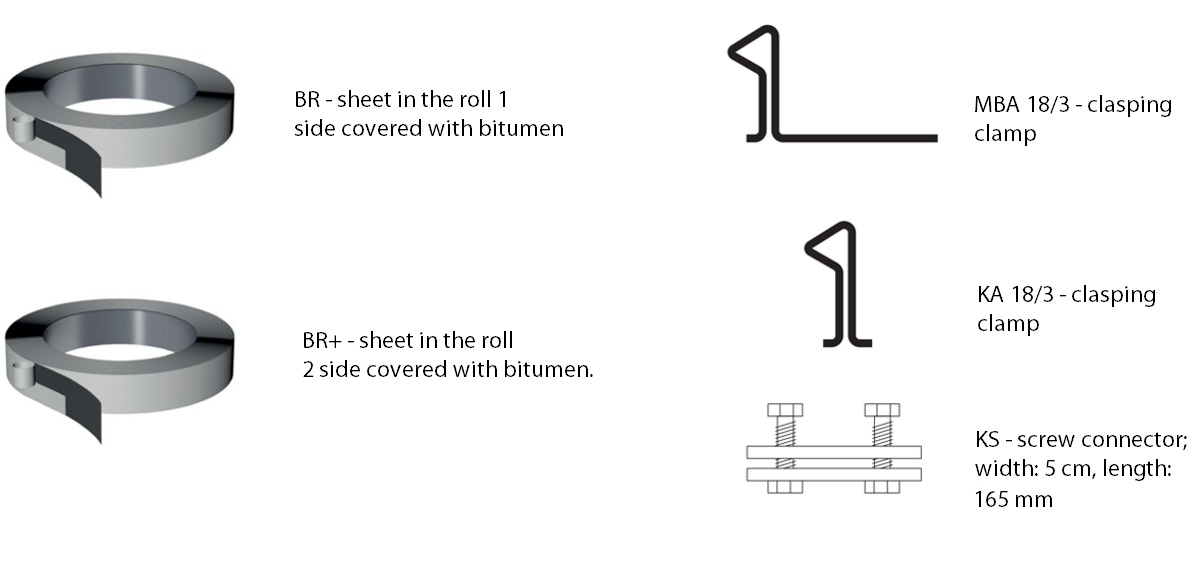

System elements

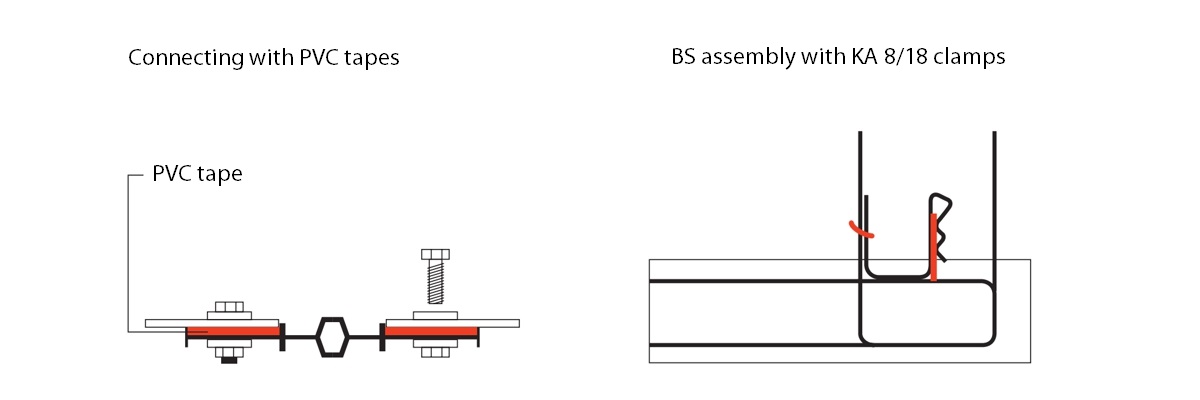

Assembly

ErFlex is mounted with the KA 8/18 or K 17 clamps. Connecting sections - KA 18/3.
Before concreting, remove the film.

Notes

• When installing a slotted plate covered with a sealing compound on one side, the coating should be laid on the upside.

• Mounting to the upper layer of the reinforcement with the use of a mounting angle bar or special mounting stirrups.

• Shortly before concreting, remove the appropriate part of the protective film.

• The recommended depth of the joint sheet metal in fresh concrete is at least 3 cm

The video below shows the assembly of ErFlex sheets
